BIG JURIJ - Flat steel straightening machines

Don't be stupid,
work with head and mind
instead of hammer and hand !

Why BIG JURIJ

Non-destructive & gentle forces

The BIG JURIJ straightens via pressure on the material and prevents tensile stress.  This ensures that the yield point is maintained and  plastic deformation of the material will be avoided.

Fast progress & easy handling

The BIG JURIJ convinces with a throughput speed of up to 10 metres per minute. One person is sufficient for operation.

Exact processing & simple operation

The BIG JURJ works with high precision and process reliability. Once the settings are specified, every flat bar of this batch will be consistently straightened.  Thus, any helper can operate our flat steel straightening machine.

BIG JURIJ - explained in 45 seconds

Flat steel can be straightened in dimensions up to 20 x 80 mm. The item length is only limited by the space available on the ejection side of the straightening machine. The shortest length of the straightened semi-finished product is 450 mm, which makes it very easy to handle.

Who is behind BIG JURIJ

Experts in metal processing

In 2018, the two partners Michael Nagel and Donat Reinschmidt faced the problem of having to process 21 tons of flat steel into flat steel railings in their workshop.

Since the quality standards of our customers are high, it was necessary to check and straighten each flat steel. In this project, the processing of the flat steel took 3 months, during which our employee Jurij M. had to complete his straightening work with the utmost care and accuracy.

At the beginning of 2019, a team of engineers and foremen developed and built the prototype of the BIG JURIJ. Completion took place in April and right from the first project, the straightening machine was put through its paces with 19 tons of flat steel for railings.

The BIG JURIJ incorporates the know-how of Holl Stahlbau from Stutensee near Karlsruhe. Non-destructive, precise, fast, clean and quiet - that's the BIG JURIJ.

YOU DON'T HAVE A BIG JURIJ YET?

THEN CONTACT US NOW

Non-destructive, accurate, fast, clean and quiet - that's the BIG JURIJ.

Technical data

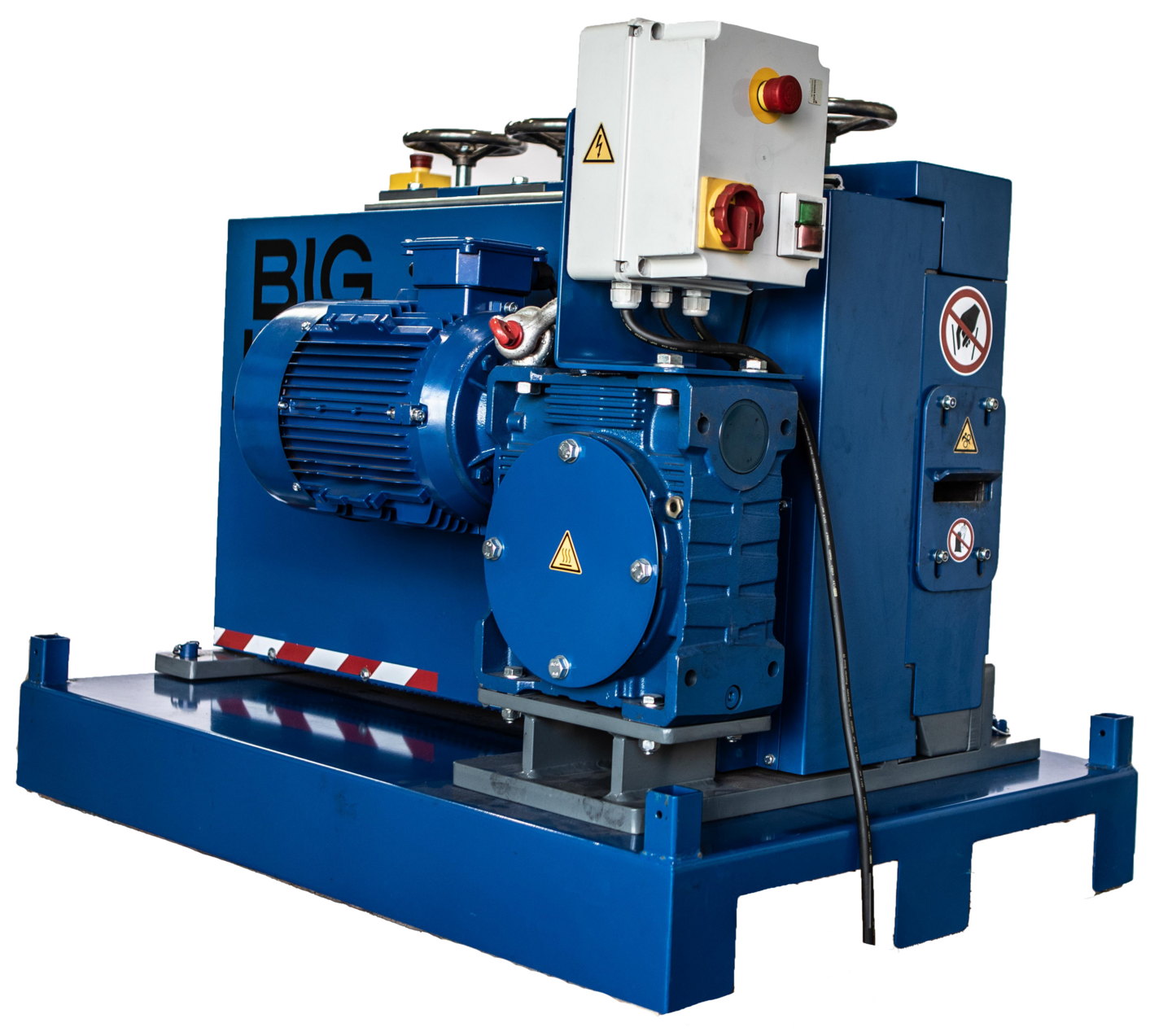

Big JURIJ L

  • Material length: from 450 mm
  • Cross section: from 30x5 to 80x20 mm
  • Connection: 16 Ampere 400V
  • Dimension 1200 x 800 x 800 mm
  • Weight: 680 kg
  • Straightening capacity: up to 10 metres/minute

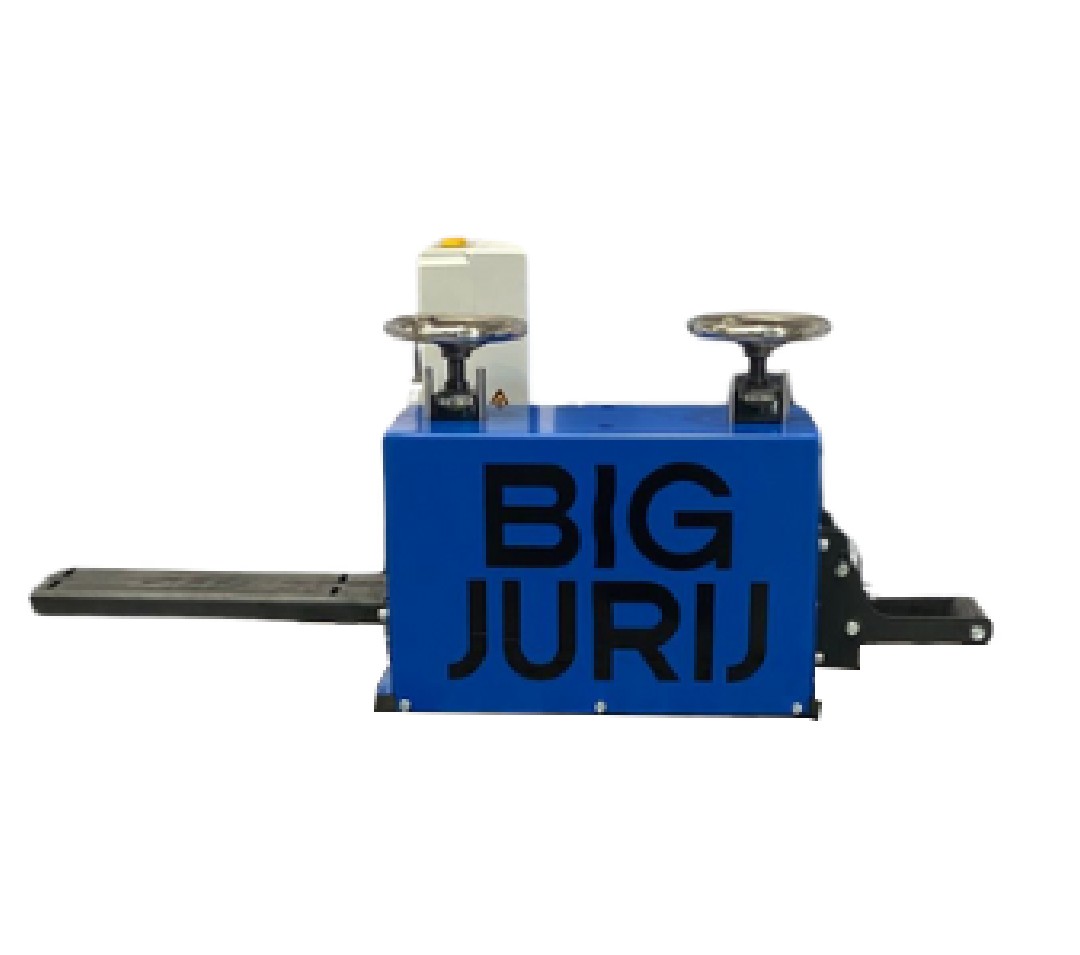

BIG JURIJ S

  • Material length: from 450 mm
  • Cross section: from 30x5 to 60x12/50x15 mm
  • Connection: 16 Ampere 400V
  • Dimension 1200 x 800 x 800mm
  • Weight: 315 kg
  • Straightening capacity: up to 10 metres/minute

Zufriedene Kunden

sprechen mehr als 1000 Bilder

undefined

Metallbau Bauschlosserei WENDT immediately recognized the added value for their company during the demonstration of the BIG JURIJ and was thrilled that there is a flat steel straightening machine on the market that meets their quality requirements.

We, the team around the BIG JURIJ - the flat steel straightening machine, wish you much success with your new work colleague.

undefined

Today we had another successful BIG JURIJ performance. Please ask for your personal expert consultation.
